Casio DH-100 and DH-200 Digital Horns
|
|
The Casio DH-100 and 200 were sold in the U.S. in the mid 1980's. You can usually
find one for sale on ebay.com almost any time.While they did not seem to catch
on with the general public, those who like them like them a lot.
The Casio DH-200 is identical to the DH-100 except it is black instead of silver.
Here are some of the sounds that the horn can make with its built-in synthesizer
bari-sax.mp3 (112K)
trumpet.mp3 (44K)
clarinet.mp3 (50K)
flute.mp3 (66K)
oboe.mp3 (47K)
These Casio horns suffer from a common failure mode. They
almost all seem to eventually develop a high pitched squeal that
renders the built-in sounds useless. Fortunately, they can be repaired. If you are thinking about
buying one on ebay or elsewhere, be sure to have the seller
verify that it is still working.
The DH-100 lets you choose from any of 6 horn sounds,
including saxophone, trumpet, synth-reed, oboe, clarinet and
flute.
EBAY Sellers: This page is copyrighted. If you want to use any of this material in your eBay ad, you may do so as long as you attribute it to this web site.
Features: (from
www.tedkeys.com)
- Built-In Speaker
- Portament Effect: An effect that creates a "gliding"
effect, for natural, "horn-like" transition
between notes.
- 2-Octave Key Transpose: Each time you
press the transpose key, the horn will transpose up one
half-step. You can use this key to raise or lower the key
up to one octave.
- Breath Modes: Turn the breath mode ON
and you blow just like a normal horn, but turn it OFF and
sounds can be produced just by fingering the note keys.
- Built-in Vibrato Some people love the
built-in vibrato. Others who already have a well
developed breath vibrato find it irritating.
- Two-way Fingering: You may choose
between two different fingering patterns. One is similar
to a recorder,and ranges 2.5 octaves. The other is the
Casio system that ranges 4 octaves;
- MIDI Output: The DH-100 is equipped with
the Musical Intrument Digital Interface (MIDI), that
gives the DH-100 control of other MIDI instruments or
sound sources. For example, connect the DH-100 to a
digital synthesizer and virtually limitless digital
sounds are at your control. Note that the horn outputs
breath control as MIDI aftertouch messages. You must use
a synthesizer that can be set to respond to aftertouch
messages in order to make this horn work right with MIDI.
- Output Jack: Use the output jack for
headphones or play through a sound system or your home
stereo
- POWER: Uses 5 AA batteries or AC Adapter rated 7.5V / 600mA
Don't try to use a higher voltage adaptor, because it can
fry the internals. And the voltage regulator used in this
horn is not manufactured anymore, so if you plug in too
high a voltage, you can sell the horn to me for spare
parts. You can use a universal AC adaptor as long as it
is rated 600mA or more. 300ma rated adaptors will work, but you might hear some AC hum at high volume. The horn is protected against
reverse polarity.
Casio DH-100 MANUAL and FINGERING CHART
Need a manual for a DH-100? Here is one
in pdf format (1.4MB)
Modification to add an E-flat Key!
I hate it that Casio left out the E-flat key. So I installed one...
Casio Fingering Players
When you turn on the horn, you have to hold the portamento key
down in order to enable the Casio proprietary fingering mode.

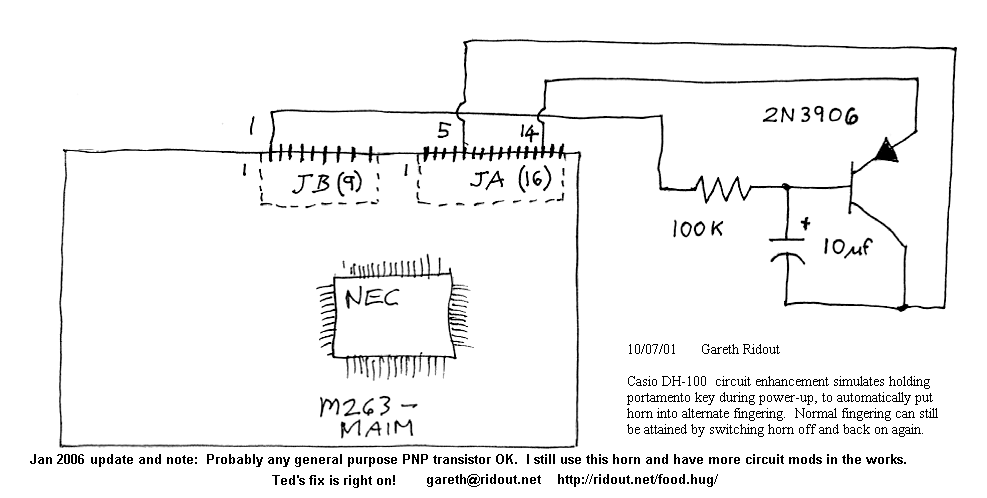

Gareth Ridout submitted a simple circuit modification that allows
the horn to turn on in the Casio Fingering mode. You can turn the
horn off and back on again to enable the recorder fingering mode.Here is his circuit
This page was last updated on 27 June, 2007.Copyright Ted Keys 2007
